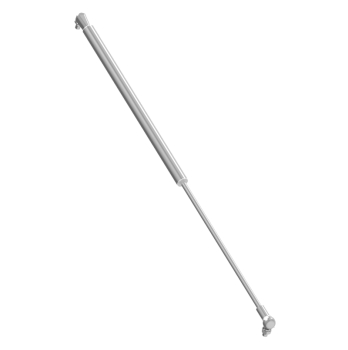

89S000885JB Compression Gas Spring

Model: 89S000885JB

Quantity

Description	8-254 Customline Stainless Steel Gas Spring with Valve
Product Type	Compression gas spring
Rod Ø (in)	0.315
Body Ø (in)	0.709
Stroke (in)	10.000
Shoulder Length (in)	22.362
Rod End	F08231801 Stainless steel Ball Joint
Rod End Info	Stud M8x1.25, Ball Ø13mm, includes nut
Body End	F08-XB Plastic Ball Joint
Body End Info	Stud M8x1.25, Ball Ø10mm
Rod End	F08231801
Body End	F08-XB
Mounting Centres (in)	619
Rod Material	Stainless steel 316
Body Material	Stainless steel 316
Set Force at (100-250 N)
Rod Position on Model (0-254 mm)
Force Range (N)	100-250
Adjustable Force	Yes
Damping (in)	1.2
Rod Thread	M8x1.25
Rod Thread Length (in)	0.47
Body Thread	M8x1.25
Body Thread Length (in)	0.47
K Factor	1.3
Weight (oz)	12.593
